Abrasive Pneumatic Metering Valve

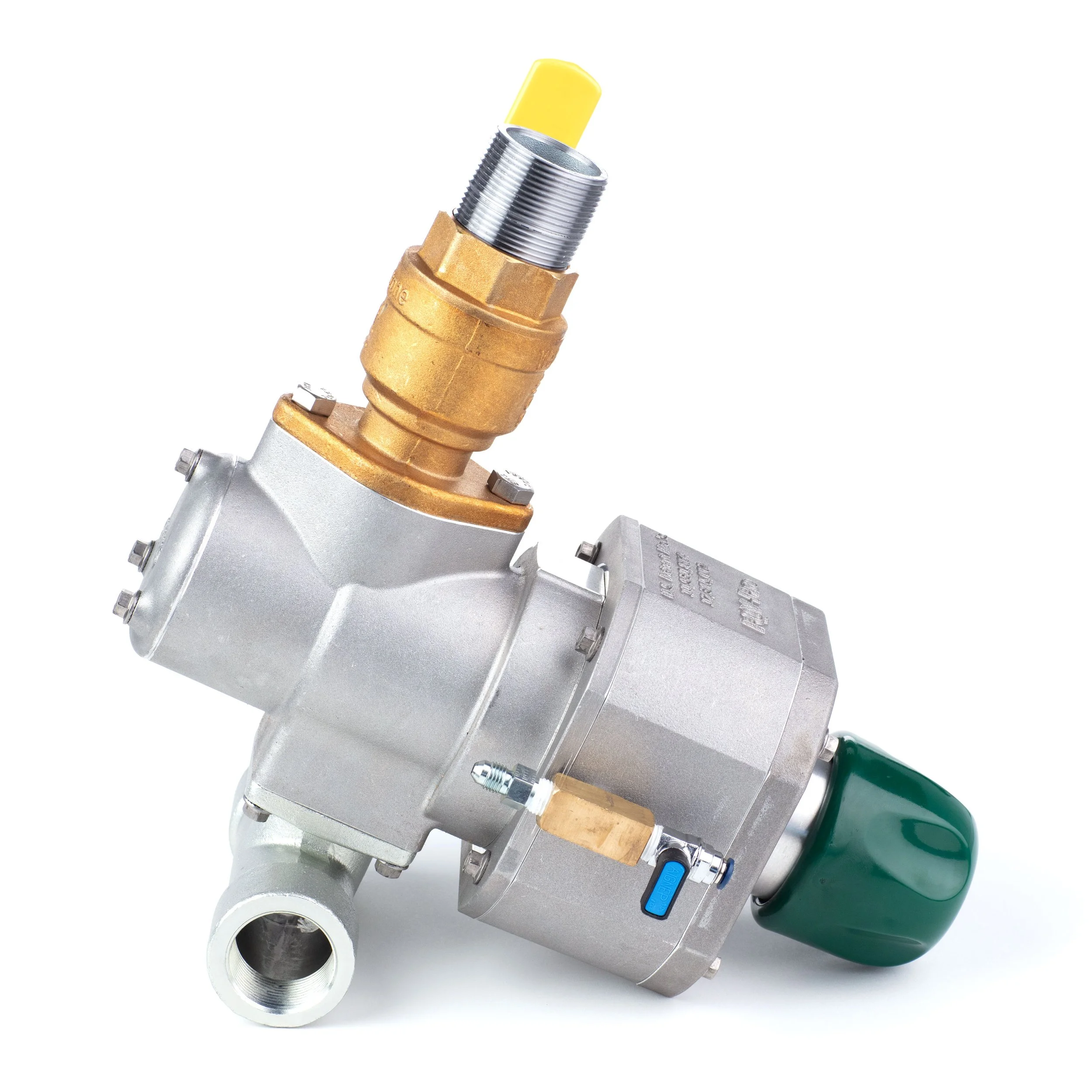

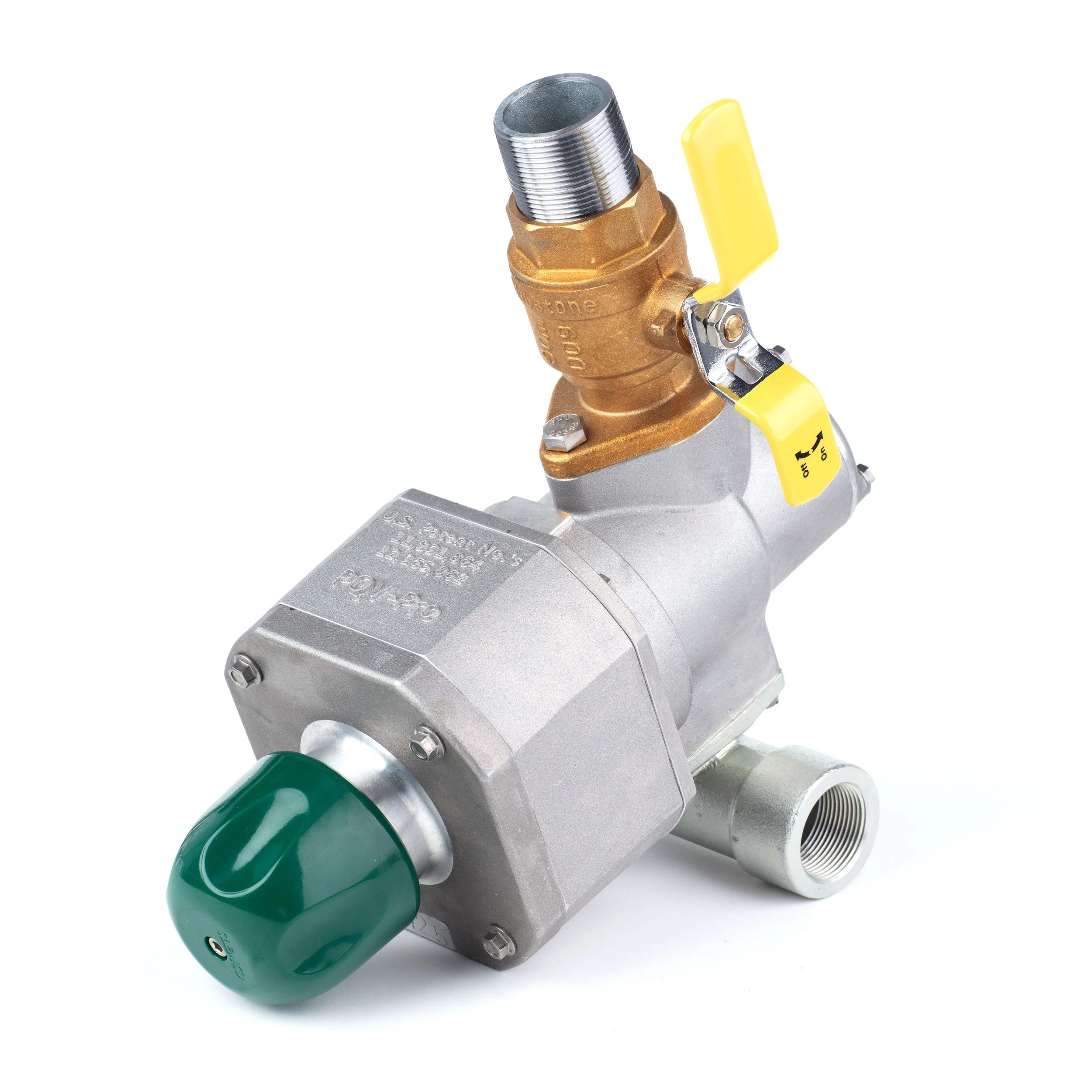

Mechanical valve with metallic and green plastic components

PQV-Pro

  • More

    • Uptime & Reliability

    • Compatibility with all common media

    • No additional sleeves or inserts required

    Better

    • Serviceability on the Pot

    • Adjustability under Pressure with optional kit

    • Media flow - 10% higher than competitive valves

    • Tested with 25 & 80-grit hardened steel media thru unpressurized hopper

    Different

    • Single signal line simplifies setup

    • Piston actuated – no moving diaphragms

    • Patented two-stage seal for better control and less wear

    • U.S. Patent Nos. 11,931,864 & 12,365,062

    Less

    • Maintenance required

    • Complexity and wear items

    • Time needed for maintenance

    • 10-minute actuation assembly swap

Technical Data Sheet
Industrial mechanical devices with metal components, valves, and fittings

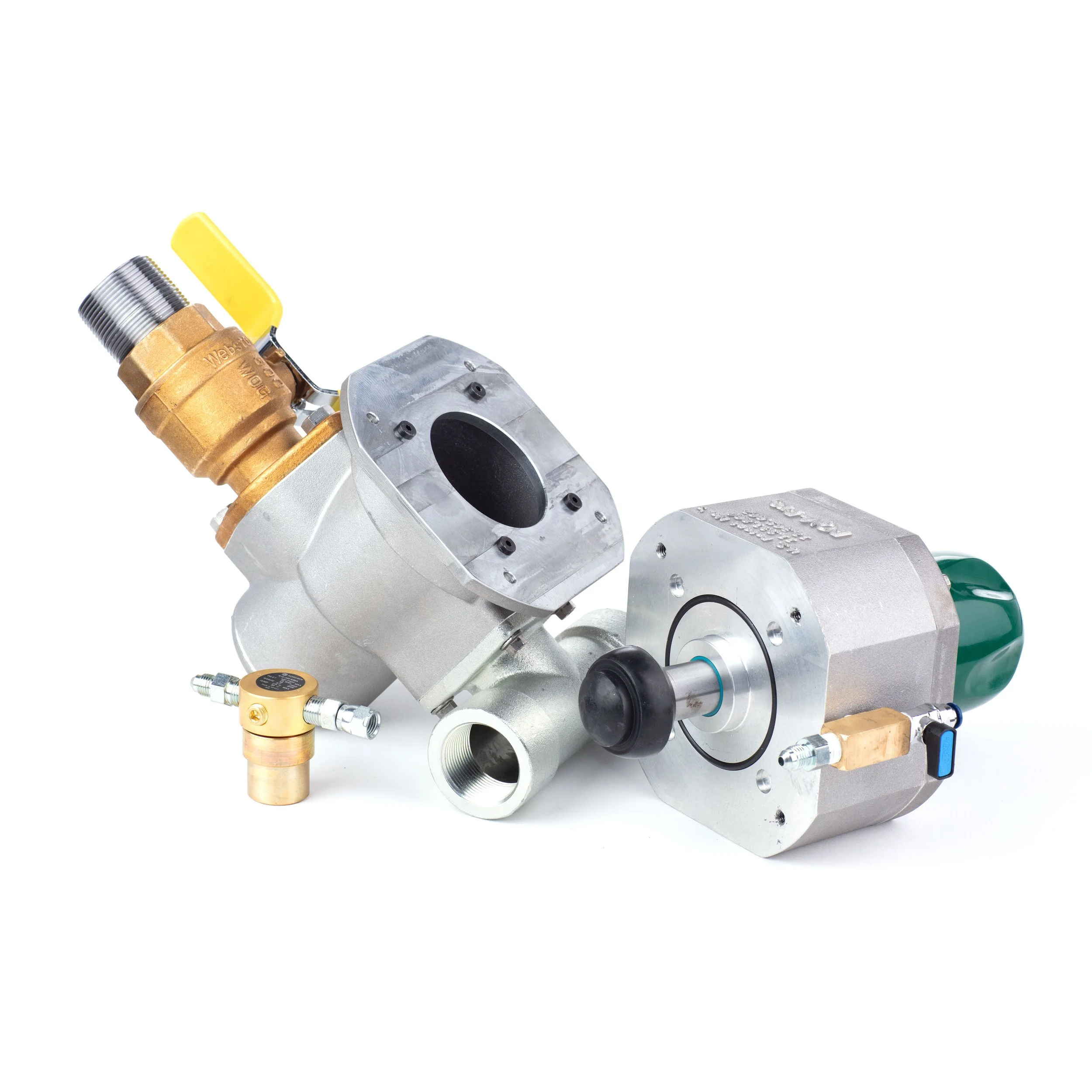

Servicing the PQV-Pro

    • Designed for Long-Duration, Ground-Level Blasting: Ideal when blasting for extended periods with short blast hose runs on the ground.

    • MQV-Pro (Manual Quantum Valve): Compatible with all common media; fits 2-cuft and larger blast machines.

    • FSV & MSV (Flat and Manual Sand Valves): FSV is for larger machines using expendable mineral or slag media; MSV fits ½- and 1-cuft machines with similar media.

    • LPV (Lo-Pot Valve): Specially designed for 6-cuft Lo-Pot machines, its compact form fits the low-clearance configuration.

    • LMV (Lightweight Media Valve): Optimized for soft abrasives like soda, glass bead, and agricultural media in Soft King and Pool Pal machines.

Mechanical device with metal, brass, and green-colored parts, including threaded and valve components.

Models and Pricing

    • Available through Authorized Clemco Distributors in USA, Canada and Mexico.

    MSRP USD

    • 32120 1.25” w/ ball valve   $1,300

    • 32390 1.50” w/ ball valve   $1,300

    • 32389 1.25”   $1,200

    • 32400 Meter Under Pressure Kit

    • 32118   PQV Actuator Kit:   $795

      • $150 Core Rebate available for used Actuators

      • Comes w/ standard factory warranty

      • Seat and Plunger included

    • 32394   Plunger, Seat, Gasket, & O-ring  $90

    • 31187   Metering Knob Assembly   $144
