You are viewing: "Pressure Blast Cabinets"


Aerolyte Systems > Pressure Blast Cabinets

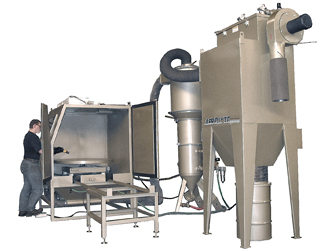

Aerolyte Plastic Media Blast Cabinets

Designed specifically for plastic and other lightweight media, Aerolyte pressure blast cabinets feature steeply sloped blast machine cones to ensure smooth media flow.

Available Literature:
28593 - AEROLYTE Capabilites
27556 - 3636A Pressure Cabinet for Non-Aggressive Media
27557 - 3672A Pressure Cabinet for Non-Aggressive Media
27577 - 4050A Ergonomic Pressure Cabinet for Non-Aggressive Media
27558 - 4050A Pressure Cabinet for Non-Aggressive Media
25427 - 6060A Pressure Cabinet for Lightweight Media
24178 - The Bicarbonator Pressure Blast Cabinet


ZERO Blast Cabinets > Pressure Blast Cabinets


BNP 220 Pressure Blast Cabinet

BNP blast cabinets deliver efficient, affordable media blasting to clean, peen, deburr, or finish parts. The BNP 220's larger enclosure (50 by 39 by 43 inches tall) accepts powered turntables, ZERO's A-300 Automation Kit, and other Option Plus modifications. Shown with dry filter dust collector. Also available with optional reverse-pulse dust collector.

For tough cleaning jobs, pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent.

BNP 220 Pressure Cabinets Feature:
Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Ceiling-mounted, two-tube fluorescent light fixture with abrasive resistant Lexan® cover for extraordinary visibility.
  • Safety interlocks interrupt blasting if either door isopened. (Conforms to US regulations.)
  • Adjustable, heavy-duty chromed latches seal doors tight through years of service.
Productivity
  • High efficiency, 2.0 cubic foot capacity, ASME coded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings, and cabinet integrated controls.
  • Unique Air Logic system (pilot actuated) to maximize air flow to the blast gun.
  • Double-wall, sound-insulated doors, with industrial quality lift-off hinges.
  • 14-gauge steel all-welded construction, with precisely formed bends, forms a rigid, long-lasting cabinet shell.
Convenience
  • Tilt-out window, for tool-free glass changes in minutes.
  • Pressure regulator, gauge, and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
Common Applications
  • Remove rust, mill scale, heat scale, and carbon buildup from metals
  • Strip paint, powder coating, plating, and anodizing from parts for rework
  • Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts
  • Extract residual sand from castings
  • Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
  • Etch artwork and lettering into glass, stone, plastics, metal and other materials
  • Clean release agents and material buildup from molds
Available Literature:
20008 - BNP 220 Suction Blast Cabinet
20009 - BNP 220 Pressure Blast Cabinet
14355 - A-300 Automation Kit for BNP 220
23340 - Options Plus for Abrasive Blast Cabinets


ZERO Blast Cabinets > Pressure Blast Cabinets

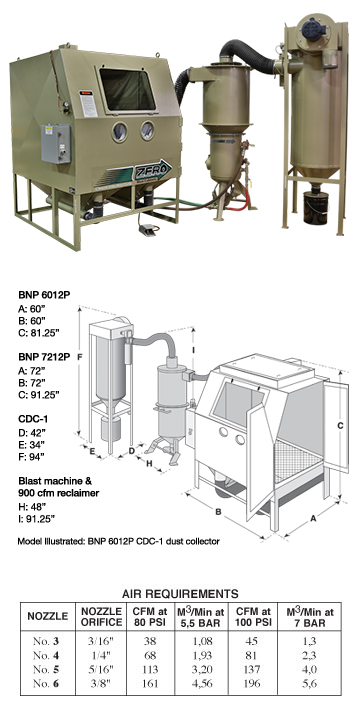

BNP 6012 & 7212 Pressure Blast Cabinets

BNP 6012 & 7212 Mini Blast Rooms deliver efficient, affordable media blasting to clean, peen, deburr, or finish parts. For tough cleaning jobs, pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent. For big jobs, the BNP 6012 and BNP 7212 offer the biggest work chambers available in manual blast cabinets - 58 by 58.5 by 50 inches tall and 69 by 72 by 60 inches tall, respectively. Available in suction and pressure models, ZERO's Mini Blast Rooms accept a wide array of Options Plus modifications. Add the basics, such as turntable and track with vertical door, or tailor the system to your application with oscillating arms, pass-through doors, multiple guns - even additional work stations. BNP-7212 shown with 900 CFM reclaimer and dry filter dust collector.

BNP 6012 & 7212 Pressure Cabinets Feature:
Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Ceiling-mounted, four-tube fluorescent light fixture with abrasive resistant wire-embedded glass cover cover for extraordinary visibility.
  • Safety interlocks interrupt blasting if either door is opened.
  • Heavy-duty, cam-style latch seals doors tight through years of service.
Productivity
  • High efficiency, 2.0 cubic foot capacity, ASME coded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings and cabinet integrated controls.
  • Unique Air Logic system (pilot actuated) to maximize air flow to the blast gun.
  • Double-wall, sound-insulated doors, with industrial quality lift-off hinges.
  • 12-gauge steel all-welded construction, with strength breaks to form a rigid, long-lasting cabinet shell.
  • Large 20" x 30" view window.
Convenience
  • Tilt-out window, for tool-free glass changes inminutes.
  • Pressure regulator, gauge, and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
Common Applications
  • Remove rust, mill scale, heat scale, and carbon buildup from metals
  • Strip paint, powder coating, plating, and anodizing from parts for rework
  • Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts
  • Extract residual sand from castings
  • Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
  • Etch artwork and lettering into glass, stone, plastics, metal and other materials
  • Clean release agents and material buildup from molds

Available Literature:
20010 - BNP 6012 & 7212 Mini Blast Room Suction System
20011 - BNP 6012 & 7212 Mini Blast Room Pressure System
23340 - Options Plus for Abrasive Blast Cabinets


ZERO Blast Cabinets > Pressure Blast Cabinets


BNP 65 Pressure Blast Cabinet

BNP blast cabinets deliver efficient, affordable media blasting to clean, peen, deburr, or finish parts. The BNP 65 (enclosure size: 36 by 36 by 38 inches) is available in suction and pressure blast models, and accepts popular options - turntables and tracks for heavy parts, vertical doors to speed loading, and other Options Plus modifications. Shown with 600 CFM reclaimer (rear mounted) and dry filter dust collector. Also available with optional reverse-pulse dust collector.

For tough cleaning jobs, pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent.

BNP 65 Pressure Cabinets Feature:
Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Ceiling-mounted, two-tube fluorescent light fixture with abrasive resistant Lexan® cover for extraordinary visibility.
  • Safety interlocks interrupt blasting if either door isopened. (Conforms to US regulations.)
  • Adjustable, heavy-duty chromed latches seal doors tight through years of service.
Productivity
  • High efficiency, 2.0 cubic foot capacity, ASMEcoded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings and cabinet integrated controls.
  • Unique Air Logic system (pilot actuated) to maximize air flow to the blast gun.
  • Double-wall, sound-insulated doors, with industrial quality lift-off hinges.
  • 14-gauge steel all-welded construction, with precisely formed bends, forms a rigid, long-lasting cabinet shell.
Convenience
  • Tilt-out window, for tool-free glass changes in minutes.
  • Pressure regulator, gauge, and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
Common Applications
  • Remove rust, mill scale, heat scale, and carbon buildup from metals
  • Strip paint, powder coating, plating, and anodizing from parts for rework
  • Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts
  • Extract residual sand from castings
  • Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
  • Etch artwork and lettering into glass, stone, plastics, metal and other materials
  • Clean release agents and material buildup from molds

Available Literature:
20006 - BNP 65 Suction Blast Cabinet
20007 - BNP 65 Pressure Blast Cabinet
23340 - Options Plus for Abrasive Blast Cabinets




ZERO Blast Cabinets > Pressure Blast Cabinets


BNP Double 220 Pressure Blast Cabinet

For tough cleaning jobs, pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent.

Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Safety interlocks interrupt blasting if either door is opened.

Productivity:

  • Two stations provide easy access to blast from either station to accomodate long or complex parts. One nozzle and foot pedal are standard.
  • High efficiency, 2.0 cubic foot capacity, ASME-coded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings and cabinet integrated controls.
  • Unique Air Logic system (pilot actuated) to maximize air flow to the nozzle.
  • Ceiling-mounted, two-tube fluorescent light fixture with abrasive resistant Lexan® cover for extraordinary visibility.
  • 14-gauge steel all-welded construction, forms a rigid, long-lasting cabinet shell.

Convenience:

  • Tilt-out window, for tool-free glass changes in minutes.
  • Double-wall, sound-insulated doors on both ends, industrial-quality lift-off hinges.
  • Pressure regulator, gauge, air and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
Available Literature:
23934 - BNP Double 220 Pressure Blast Cabinet




ZERO Blast Cabinets > Pressure Blast Cabinets

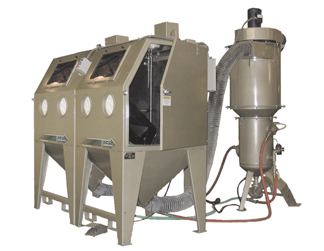

BNP Double 65 Pressure Blast Cabinet

For tough cleaning jobs, pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent.

BNP Double 65 Pressure Cabinets Feature:

Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Safety interlocks interrupt blasting if either door is opened.

Productivity:

  • Two stations provide easy access to blast from either station to accomodate long or complex parts. One         nozzle and foot pedal are standard.
  • High efficiency, 2.0 cubic foot capacity, ASME-coded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings and cabinet integrated controls.
  • Unique Air Logic system (pilot actuated) to maximize air flow to the nozzle.
  • Ceiling-mounted, two-tube fluorescent light fixture with abrasive resistant Lexan® cover for extraordinary visibility.
  • 14-gauge steel all-welded construction, forms a rigid, long-lasting cabinet shell.

Convenience:

  • Tilt-out window, for tool-free glass changes in minutes.
  • Double-wall, sound-insulated doors on both ends, industrial-quality lift-off hinges.
  • Pressure regulator, gauge, air and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
Available Literature:
23936 - BNP Double 65 Pressure Blast Cabinet


ZERO Blast Cabinets > Pressure Blast Cabinets

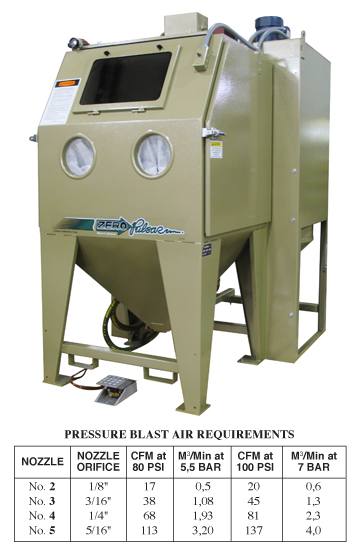

Pulsar III-P Pressure Blast Cabinet

System Description
Heavy-duty 14-gauge cabinet shell, all-welded construction; 12.5” x 19.5” safety-glass view window; fluorescent lighting with dual 20-watt tubes; heavyduty industrial-quality adjustable chrome latches; unique air-logic system to maximize efficient use of compressed air, provides optimal media reclamation and dust collection; cabinet-mounted reverse-pulse dust collector with 1 HP motor and 195 square feet of filter area; compressed-air filter; pressure regulator; easily removable dust drum for material disposal; 1.0 cu ft capacity ASME-code pressure vessel.

Safety

  • Door interlock system interrupts blasting when either door is opened
  • Optional time-delay locking system keeps doors locked after blasting stops
  • Double-wall, insulated doors, reduce exterior noise
  • Industrial-quality lift-off hinges allow easy door removal
  • Full-opening doors maximize work chamber capacity and eases loading large parts
  • Full-length, neoprene-on-fabric gloves protect operator
  • Ceiling light fixture maximizes window view area and offers commanding view of interior
Productivity
  • Unique air logic system maximizes air and media flow for blasting
  • ASME-code pressure vessel, 1.0 cu ft capacity, with 1/2” piping
  • Industrial-quality, coupled two-braid blast hose and tungsten carbide nozzle
  • Reverse-pulse cartridge dust collector evacuates spent media and ensures
  • optimal visibility for blasting; traps 99.7% of dust down to 0.5 micron
  • Adjustable chrome latches seal doors tight through years of service
Convenience
  • Tilt-out window allows tool-free glass changes in minutes
  • Easy-to-reach pressure regulator, gauge, and electric switch
  • Built-in air gun conveniently located inside allows part blow-off inside cabinet
Common Applications
  • Cleaning parts
  • Deburring machined parts
  • Stripping paint
  • Improving surface finish
  • Removing carbon build up
  • Removing heat scale
  • Applications too numerous to list
Dust Collector
Reverse pulse cartridge dust collector (which traps 99.7% of dust down to 0.5 micron) allows non-stop, high-production blasting. The polyestercellulose cartridge is automatically pulse cleaned for maximum filter efficiency. Worn cartridge can be replaced in minutes.

Tungsten Carbide Blast Nozzle
The system comes with a 3/16” orifice a Tungsten Carbide pressure blast nozzle, which consumes 38 cfm of compressed air when blasting at 80 psi. The nozzle's longwearing properties ensure hundreds of hours of service with glass bead media.

Popular Accessories

  • Alox Kit for Use with Harsh Media
  • Steel Media Kit
  • Time-delay Door Locks
  • Turntable & Track Assembly
  • HEPA Filter
  • Rubber Wall Curtains
Available Literature:
20159 - Pulsar All-In-One Cabinet Brochure
23340 - Options Plus for Abrasive Blast Cabinets
24179 - Pulsar III-PE Pressure Blast Cabinet


ZERO Blast Cabinets > Pressure Blast Cabinets

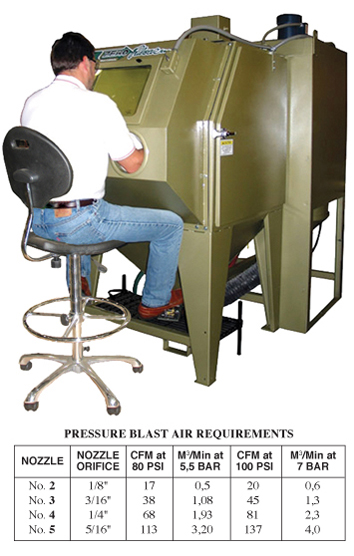

Pulsar III-PE Pressure Blast Cabinet

The ZERO Pulsar III-PE is a high-production, ergonomic blast cabinet designed specifically to enhance productivity and efficiency by offering a safe and comfortable work station for production blast operators. The Pulsar III-PE makes long production runs much easier by allowing workers to concentrate on achieving the desired surface treatment rather than on their aching back, legs, and feet.

Pulsar® III-PE Pressure Cabinet Features:

Safety

  • Door interlock system interrupts blasting when either door is opened
  • Optional time-delay locking system keeps doors locked after blasting stops
  • Double-wall, insulated doors, reduce exterior noise
  • Industrial-quality lift-off hinges allow easy door removal
  • Full-opening doors maximize work chamber capacity and eases loading large parts
  • Full-length, neoprene-on-fabric gloves protect operator
  • Ceiling light fixture maximizes window view area and offers commanding view of interior

Productivity

  • Unique air logic system maximizes air and media flow for blasting
  • ASME-code pressure vessel, 1.0 cu ft capacity, with 1/2” piping
  • Industrial-quality, coupled two-braid blast hose and tungsten carbide nozzle
  • Reverse-pulse cartridge dust collector evacuates spent media and ensures optimal visibility for blasting; traps 99.7% of dust down to 0.5 micron
  • Adjustable chrome latches seal doors tight through years of service

Convenience

  • Tilt-out window allows tool-free glass changes in minutes
  • Easy-to-reach pressure regulator, gauge, and electric switch
  • Built-in air gun conveniently located inside allows part blow-off inside cabinet
Common Applications
  • Cleaning parts
  • Deburring machined parts
  • Stripping paint
  • Improving surface finish
  • Removing carbon build up
  • Removing heat scale
  • Applications too numerous to list

Available Literature:
24179 - Pulsar III-PE Pressure Blast Cabinet
20159 - Pulsar All-In-One Cabinet Brochure
23340 - Options Plus for Abrasive Blast Cabinets


ZERO Blast Cabinets > Suction & Pressure Blast Cabinets


Pulsar IX Suction & IX-P Pressure Blast Cabinets
The Pulsar IX (suction or pressure) is the largest cabinet in the Pulsar series. It features a separate skid-mounted power module, large view window and a 2.0 cu.ft. capacity ASME-coded vessel on the pressure model. Work surface is flush with doorsill for easier access. Overall dimensions for cabinet are 87" H, 61" W x 57.5" D. Working chamber dimensions are 45" H x 55.5" W x 50.5" D. Power Module is 93" H x 50" W x 62" D.

Available Literature:
23352 - Pulsar IX Pressure PS
23351 - Pulsar IX Suction PS
23340 - Options Plus for Abrasive Blast Cabinets


Aerolyte Systems > Pressure Blast Cabinets


The Bicarbonator Soda Blast Cabinet

The Aerolyte PSB 2342B Bicarbonator Pressure Blast Cabinet is designed specifically for use with sodium bicarbonate media for degreasing, cleaning, and paint stripping. Soda media is non-toxic, nonhazardous, and soft, making it ideal for delicate substrates; and it is water-soluble simplifying the process of residual media removal and disposal.

Unique patented ClearView™ ventilation technology provides outstanding visibility during soda blasting, unlike any other cabinet on the market.

The Aerolyte Bicarbonator Cabinet Features

Safety

  • Door interlock system interrupts blasting when either door is opened
  • Optional time-delay locking system keeps doors locked for predetermined time
  • Double-wall, insulated doors, reduce exterior noise
  • Full-opening doors with lift-off hinges maximize work chamber capacity and ease loading large parts
  • Full-length, neoprene-on-fabric gloves offer long wear life and operator protection
  • Dual 15-watt fluorescent lights illuminate the work chamber and stay cool

Productivity

  • Patented ClearView™ targeted high-velocity ventilation technology provides exceptional visibility
  • Unique air logic system maximizes air and media flow for blasting
  • ASME-code pressure vessel, 0.5 cuft capacity, with 1/2” piping
  • Reverse-pulse cartridge dust collector immediately evacuates airborne dust and traps 99.7% of dust down to 0.5 micron
  • Robust, adjustable chrome latches seal doors tight through years of service

Convenience

  • Tilt-out window allows tool-free glass changes in minutes
  • Easy-to-reach pressure regulator, gauge, and electric switch
  • Built-in air gun conveniently located inside allows part blow-off inside cabinet
The system comes with a 3/16-inch (No. 3) orifice pressure blast nozzle, which consumes 38 cfm of compressed air when blasting at 80 psi. The nozzle features a tungsten carbide liner, ensuring a long wear life.

Available Video:
Soda Blasting Applications Demo

Available Literature:
 24178 - The Bicarbonator Pressure Blast Cabinet





 Showing results 1 to 10 of 10


| Home | ©2019 Clemco Industries Corp.
