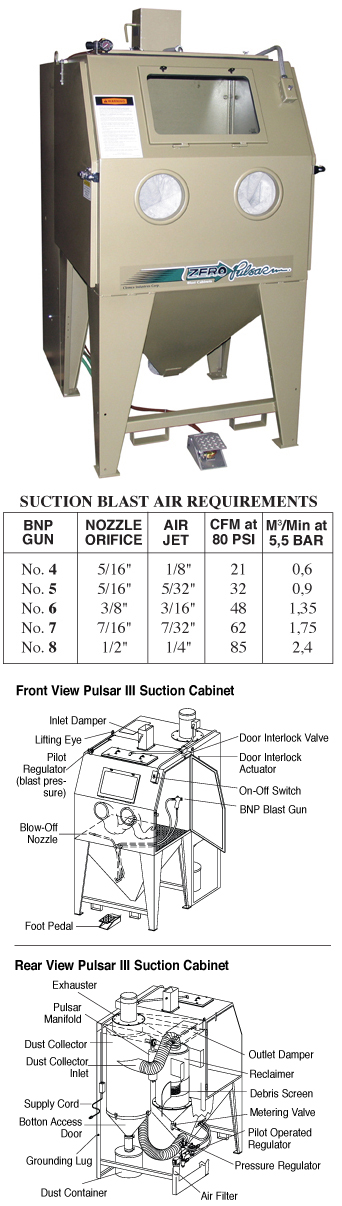

Pulsar III Suction Blast Cabinet

The first industrial, all-in-one blast cabinet includes blast system, true media reclaimer, and modern reverse pulse cartridge dust collector. Fully equipped to handle most common recyclable blast medias, the Pulsar III overall dimensions are 76" H, x 38" W x 62"D. Working chamber dimensions are 37" H x 36" W x 35" D. Heavy-duty 14-gauge cabinet shell, all-welded construction; 12.5” x 19.5” safety-glass view window.

Safety

  • Door interlock system interrupts blasting when either door is opened
  • Optional time-delay locking system keeps doors locked after blasting stops
  • Double-wall, insulated doors, reduce exterior noise
  • Industrial-quality lift-off hinges allow easy door removal
  • Full-opening doors maximize work chamber capacity and eases loading large parts
  • Full-length, neoprene-on-fabric gloves protect operator
  • Ceiling light fixture maximizes window view area and offers commanding view of interior
Productivity
  • Unique air logic system maximizes air and media flow for blasting
  • Industrial-quality, coupled two-braid blast hose and tungsten carbide nozzle
  • Reverse-pulse cartridge dust collector evacuates spent media and ensures
  • optimal visibility for blasting; traps 99.7% of dust down to 0.5 micron
  • Adjustable chrome latches seal doors tight through years of service
Convenience
  • Tilt-out window allows tool-free glass changes in minutes
  • Easy-to-reach pressure regulator, gauge, and electric switch
  • Built-in air gun conveniently located inside allows part blow-off inside cabinet
Common Applications
  • Cleaning parts
  • Deburring machined parts
  • Stripping paint
  • Improving surface finish
  • Removing carbon build up
  • Removing heat scale
  • Applications too numerous to list
Dust Collector
Reverse pulse cartridge dust collector (which traps 99.7% of dust down to 0.5 micron) allows non-stop, high-production blasting. The polyestercellulose cartridge is automatically pulse cleaned for maximum filter efficiency. Worn cartridge can be replaced in minutes.

Popular Accessories

  • Alox Kit for Use with Harsh Media
  • Steel Media Kit
  • Time-delay Door Locks
  • Turntable & Track Assembly
  • HEPA Filter
  • Rubber Wall Curtains
Available Literature:
20159 - Pulsar All-In-One Cabinet Brochure
23340 - Options Plus for Abrasive Blast Cabinets
