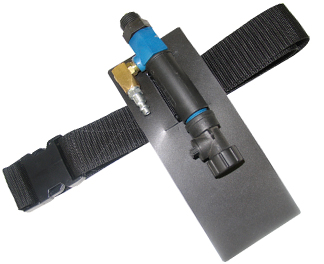

Clem-Cool Air Conditioner

The Clemco Clem-Cool Air Conditioner (CCAC) allows the blast operator to control the temperature and volume of air to a Clemco high-pressure Type CE continuous flow supplied-air respirator within a preset range and to cool the air by as much as 50 degrees F.

Requirements for Operation
20 cfm at 90 to 100 psi of Grade D quality breathing-air as defined by the Compressed Gas Association Commodity Specification: G-7.1) (www.cganet.com)

Pressure requirements vary with hose length. (hose offered in 25 ft increments) Minimum pressure to produce minimum airflow to respirator.
25 ft - 75 ft    90 psi
100 ft - 200 ft    95 psi

NOTES:
1. Maximum air pressure: 100 psi.
2. Maximum hose length: 200 ft when used with respirator

Description of Operation
The Clem-Cool Air Conditioner is placed between the respirator air supply line and the helmet breathing tube. A knurled knob on the valve lets the operator adjust the cooling rate of the air entering the respirator.

The Clem-Cool Air Conditioner cannot be closed completely, so the operator always has at least the minimum air volume required for breathing and for maintaining positive pressure inside the helmet.

The CCAC comes with a belt that adjusts to fit up to a 54-inch waist.  The durable buckle can be fastened and unfastened with gloved hands.

A belt-mounted heat shield protects the operator from warm exhaust air (a byproduct of the production of cool air).

Advantages
  • Increases productivity by keeping blast operator cool and comfortable
  • Durable construction
  • Lightweight NIOSH-approved comfort system
Certifications and Approvals
The Clem-Cool Air Conditioner is approved by NIOSH for use only with Clemco Apollo HP high-pressure Type CE supplied-air respirators (not for use with low-pressure respirators).

The Clem-Cool Air Conditioner is one component of a NIOSH-approved system; use of counterfeit parts voids the NIOSH approval.

To maintain NIOSH approval, use only genuine Clemco Apollo replacement parts.

Available Literature:
25396 - Clem-Cool Air Conditioner
21965 - Cool Air Tube
21966 - Climate Control Tube
07764 - Operator Safety Equipment Brochure

Operation Manuals:
23837 - Clem-Cool Air Conditioner
