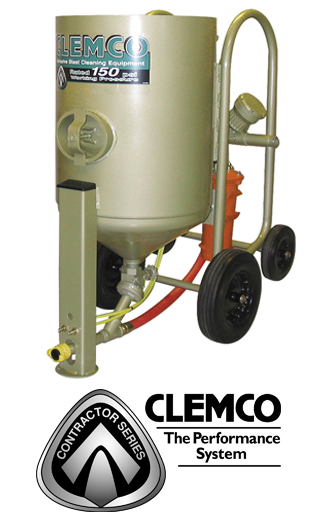

6 Cuft Contractor Blast MachinesHigh-performance blast cleaning system removes corrosion, mill scale,
and coatings from most surfaces. Produces a uniform surface texture,
and creates a surface profile to increase bonding for coatings. See
related literature for additional applications. Machine holds 6 cubic
feet of abrasive for up to 30 minutes of continuous blasting at 100 psi
with standard No. 6 nozzle (3/8-inch orifice).
Requirements for Operation
These items are required but not included with this equipment:
- Clean, dry, compressed air of sufficient volume to maintain desired pressure at the nozzle. Refer to Air Consumption Chart in Blast Off 2 booklet (publication stock no. 09294).
- Maximum working pressure 150 psi
- Minimum pressure 30 psi needed to
operate OSHA-required remote control
- NIOSH-approved, type CE, supplied-air respirator.
- Grade D breathing-air supply as defined by Compressed Gas Association Commodity Specification: G-7.1 (Refer to www.cganet.com).
- Abrasive blast media specifically marketed for abrasive blasting and appropriate for your application.
- Appropriate blast suit, work boots, hearing and eye protection.
Description of Operation
The operator controls blasting from a remote control handle at the
nozzle. Pressing the handle starts blasting; releasing it stops
blasting. The blast machine contains abrasive and meters it into the
compressed air stream.
- Four-wheel integral cart for ease of moving.
- Rated for 150-psi maximum working pressure.
- 1-1/2-inch Millennium valve provides unrestricted air flow.
- Quantum metering valve maintains smooth, consistent flow, adjustment knob allows precise control of media flow.
- 29-inch width fits through standard doorways.
- 1-1/4-inch piping allows up to 50
percent increase in air flow, when
compared to standard 1-inch piping
- Robust handles act as skid for loading machine into pickup or trailer and protect valves and piping from damage.
- Central hookup point for blast hose and remote controls.
- Weather-resistant storage area holds manuals, paperwork and small parts.
Approvals and Certifications
Clemco's quality management system is ISO 9001-2008 certified.
Blast machine pressure vessel built to American Society of Mechanical
Engineers (ASME) specifications for 125-psi working pressure. Vessel is
hydrostatically tested and National Board-certified.
Remote control system complies with OSHA regulation 1910.244 (b).
21946 - 2 Cuft Contractor Machine System with HP Respirator
21947 - 4 Cuft Contractor Machine System with HP Respirator
21948 - 6 Cuft Contractor Machine System with HP Respirator
22791 - 2 Cuft Contractor Machine System with LP Respirator
22792 - 4 Cuft Contractor Machine System with LP Respirator
22793 - 6 Cuft Contractor Machine System with LP Respirator
22793 - 2 Cuft Contractor Machine with CPF Filter
21950 - 4 Cuft Contractor Machine with CPF Filter
21951 - 6 Cuft Contractor Machine with CPF Filter
21952 - 2 Cuft Contractor Machine
21953 - 4 Cuft Contractor Machine
21954 - 6 Cuft Contractor Machine
21385 - Contractor Products Catalog
21955 - Quantum Manual Abrasive Metering Valve
21968 - Blast Machine Screens & Covers
21956 - Millennium Remote Control Valves
